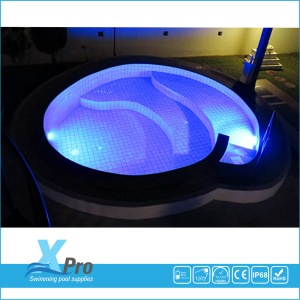

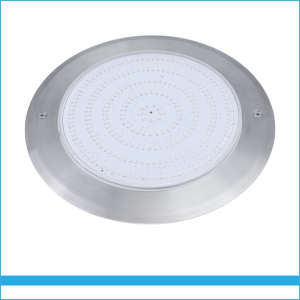

Ultra Thin 230 x 9mm LED Swimming Pool Light 316SS


Ultra-thin 230 x 9 mm LED pool light, easy to install

SINGLE COLOR or RGB or RGBW with white : RGBW
Power: : 24 WATT
Out of Stock
Save 10%

XPRO POOL ultra thin pool lights

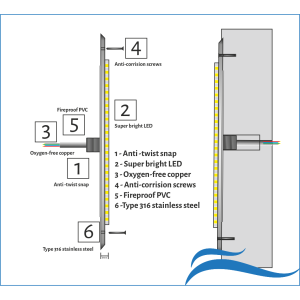

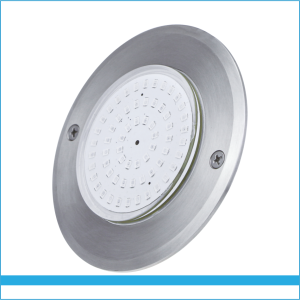

This new generation of lights is very thin and can be mounted on the wall. It is made of 316 SS stainless steel.

The lamp is delivered complete with screws

Available in singel colours and RGB - RGBW

Stock / Special request

We have stock, but not everything because often customers have special wishes. we can extend the standard cable to 5 or more meters. then we make that in the factory special, or customer wants 5 core cable RGBW we also have to make.

We also make for large projects. just contact us if you have a special wish. info@xpropool.com.  ( Average delivery time for special making two and half weeks. )


- Fully resin filled, 100% waterproof

- 316L stainless steel for seawater

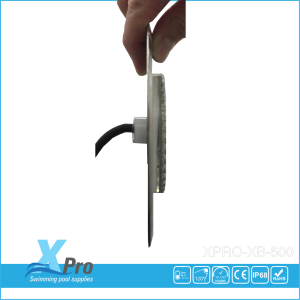

- Ultra slim design in 9 mm thickness

- 4-5 wire external

- Size 230 x 9 mm

- Voltage : DC12V

- Waterproof grade: IP68

- Beam angle: 120°

- Working environment temperature: -25°C~45°C

- Wattage : 24 Watt

- Number of leds : 441 pcs

- Brand leds : Epsper / Sanan

- Light colour : Warm white / RGB - W

- Cable length : 3 metres

- Energy class : +A

- Material : Fully resin filled plastic | Anti UV PC

- Light intensity : W 3325-3500 Lumen | RGB-W 1575-1925 Lumen

- Option also work with wifi control system

- Extremely energy efficient, with a lifespan of up to +-40,000 hours (not guaranteed!)

- Two years warranty

Quality pool lights

At XPRO POOL we choose quality. The pool lights are made of high quality ABS and are highly resistant to chemicals and UV-C.

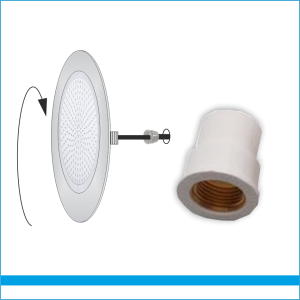

Mounting the pool light

Mounting the pool light is very easy. We recommend that you mount the pool light at approximately 55 centimetres (from the top of the pool).

If you have any questions before or during installation, please contact us by telephone free of charge and we will explain it to you in detail. That is a lot better to convey than working out the entire installation instruction on this online web shop. We are happy to advise you.


- The product must not be tested out of the water for longer than 30 seconds.

- There is no transformer included.

: SM-230S
Out of Stock

Data sheet

Power lights
18 W
25 Watt
35 W
Color lights
RGB - Colour
Warm White
Type of cable
Two wires
12V AC
250 x 8 mm



Ultra dunnen lampen

Download (244.38KB)
