This COB CCT LED Strip Set IP65 (5 meters) is a professional Tunable White lighting solution that allows smooth adjustment of the white color temperature from warm white (2700K) to cool white (6000K).
Thanks to advanced COB technology with 576 LEDs per meter, the strip produces a perfectly uniform light line without visible LED dots.

The set is supplied complete with a CCT controller and RF remote control, enabling immediate control of brightness and color temperature. Ideal for bars, hospitality, kitchens, retail spaces, offices and architectural lighting projects.

Key Features

✔ COB Dual White / CCT LED strip (WW + CW)
✔ Adjustable white color: 2700K – 6000K
✔ Continuous, dot-free light output (COB technology)
✔ 576 LEDs per meter
✔ IP65 hollow square co-extrusion (moisture-resistant)
✔ High color rendering: CRI / RA >90
✔ 10 W per meter – efficient and powerful
✔ 24V DC – stable constant-voltage system
✔ Supplied as a SET with CCT controller and RF remote
✔ 3M adhesive backing
✔ 20 cm pre-wired cables on both ends

Applications

Suitable for:

• Bars and restaurants

• Kitchens and living spaces

• Hotels and wellness areas

• Shops and showrooms

• Offices and meeting rooms

• Architectural and indirect lighting

IP65 protection makes this strip suitable for lightly humid environments (not for submersion).

Technical Specifications – LED Strip

General

• Type: COB Dual White / CCT LED strip

• Color temperature: 2700K + 6000K (Tunable White)

• Length: 5 meters per roll

• LED density: 576 LEDs/m

• Power consumption: 10 W/m

• Input voltage: DC 24V

• Color rendering: CRI / RA >90

Construction

• PCB width: 10 mm

• Strip dimensions: 12 mm × 5 mm

• IP rating: IP65

• Protection: Hollow square silicone co-extrusion

• Cutting unit: 27.8 mm

• Mounting: 3M adhesive tape (rear side)

• Wiring: 20 cm cable on both ends

Package Contents

• 1× COB CCT LED Strip – 5 m roll (IP65)

• 1× CCT / Dual White LED Controller

• 1× RF Remote Control (1 zone)

(24V power supply not included; select according to load.)

Control & Operation

Using the included CCT controller and RF remote, you can:

• Adjust white color smoothly from warm to cool

• Dim brightness from 0–100%

• Switch lighting on/off

• Use preset modes (WW / CW / dim levels)

The controller also supports push-dim, allowing control via a wall-mounted momentary switch.

Installation Advice

• Use a 24V DC constant-voltage power supply

• Recommended power supply capacity: ≥ 1.2× total strip power
  (5 m × 10 W = 50 W → PSU ≥ 60 W)

• Observe correct polarity

• IP65 is splash-resistant, not submersible

Summary

The COB CCT LED Strip Set IP65 – 5 meters is a professional Tunable White solution offering a perfectly uniform light output, high CRI and flexible control. A complete plug-and-play set designed for high-end residential and commercial lighting installations.

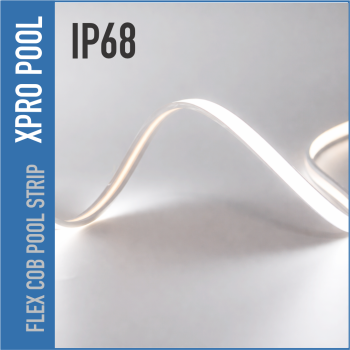

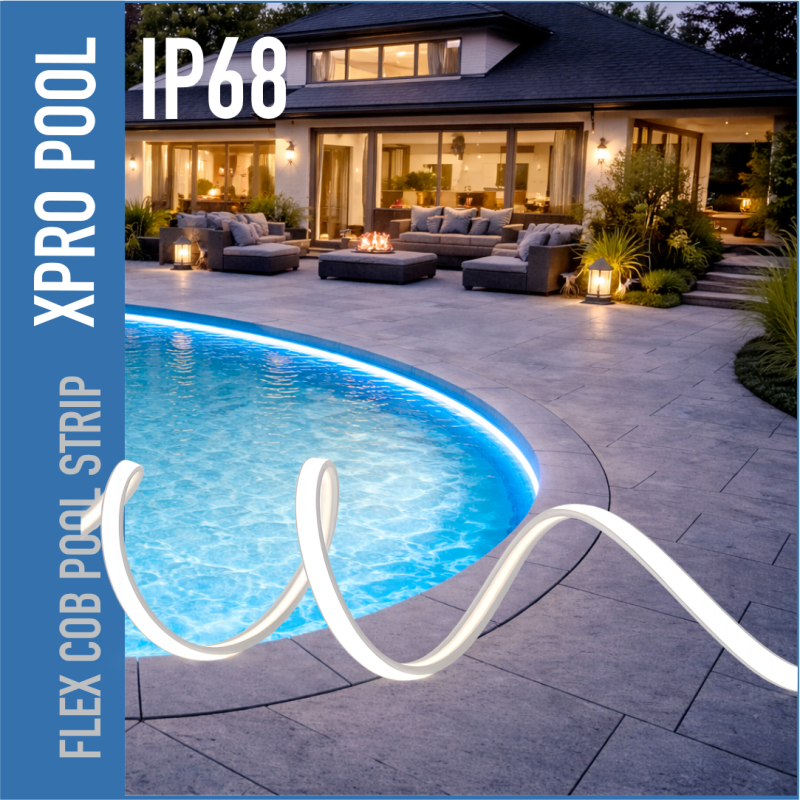

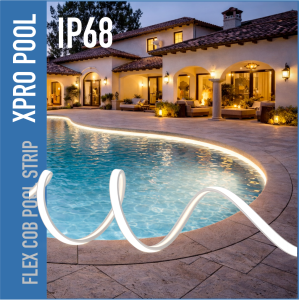

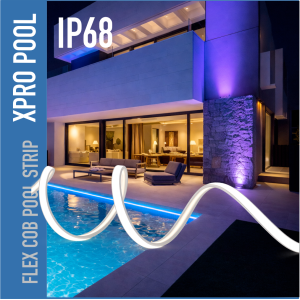

The IP68 silicone LED strip from XPRO Pool Lighting B.V. represents the next generation of professional pool and outdoor lighting.
Fully molded in solid silicone, it is 100 % waterproof (IP68) and resistant to UV, chlorine and salt. The integrated waterproof connectors ensure a quick, safe and maintenance-free installation – no caps, no seal failures.

With 120 LEDs per meter and a 120° beam angle, it provides bright, even illumination for underwater and outdoor applications.

Available in Warm White 2700 K and RGB+W – 2700 K, the strip combines elegant white lighting with vivid color effects.
Supplied in 5 m and 10 m reels, or custom-made to project length, it’s ideal for professional installations and wellness projects.

✔ Solid molded silicone construction
✔ 100 % waterproof (IP68)
✔ UV, chlorine and salt resistant
✔ Warm White 2700 K and RGB+W – 2700 K options
✔ High brightness (120 LEDs/m)
✔ Available in 5 m / 10 m reels or custom lengths
✔ Suitable for pools, gardens and façades

---

⚙️ Technical Specifications

• Model: IP68 Silicone LED Strip 24 V

• LED Type: SMD2835

• Voltage: DC 24 V

• Power: 8 W / m

• LED Density: 120 LEDs / m

• Color Temperature: 2700 K (Warm White) / RGB+W – 2700 K

• CRI: ≥ 80

• Beam Angle: 120 °

• Dimensions: 10 000 × 10 mm

• IP Rating: IP68 (fully waterproof, submersible)

• Material: Solid silicone, UV / chlorine / salt resistant

• Connection: Integrated waterproof connectors

• Lengths: 5 m and 10 m reels – custom sizes available

• Operating Temp: −25 °C to +45 °C

• Warranty: 2 years

---

💡 Advantages

✔ IP68 certified for permanent submersion
✔ Molded silicone design – no sealing issues
✔ High CRI and uniform light distribution
✔ UV-, chlorine- and salt-resistant
✔ Custom lengths for professional projects
✔ Perfect for pools, spas and gardens

XPRO Pool Lighting B.V. continuously develops new professional lighting solutions for the pool and wellness industry – focused on quality, safety and durability.

XPRO Garden Spike LED Spot 20W — IP65 — AC 85–265V

Bridgelux LED | 3000K / 6000K | 15° – 24° – 36° | Aluminium Housing | Spike Mount

The XPRO Garden Spike LED Spot 20W is a professional and powerful garden spotlight with ground spike, specially designed for durable outdoor lighting of gardens, lawns, trees, facades, parks and architectural elements. Thanks to the integrated Bridgelux LED chip and a high-quality Done Driver, this spot delivers stable, powerful light output on AC 85–265V — no external transformer required. Simply spike it in, aim it and it's ready.



IP65

Bridgelux

20W

CRI ≥80

AC85–265V

Spike



Bridgelux LED — Professional Quality You Can See

The XPRO Spike Spot is equipped with a Bridgelux LED chip — a premium American LED manufacturer renowned for high light output, stable colour temperature and exceptional reliability. Bridgelux LEDs are used worldwide in professional lighting for projects where quality and longevity are paramount. With a CRI ≥80, the colours of trees, facades and garden plants are reproduced accurately and naturally — even at night.



Choice of 15°, 24° or 36° Beam Angle

The XPRO Garden Spike Spot is available in three beam angles for perfect accent lighting in every application:



Angle	Ideal for
15°	Very narrow, powerful beam — for tall trees, slender facade elements and vertical accent lighting at long range
24°	Focused beam — for medium-sized trees, shrubs, sculptures and architectural details
36°	Wider spread — for low planting, wide facades, ground cover and general garden or lawn lighting



Warm White or Cool White — Your Choice

The spot is available in two colour temperatures for every atmosphere and application:



Version	Colour temperature	Atmosphere
Warm white	3000K	Warm, atmospheric and inviting — ideal for residential gardens
Cool white	6000K	Bright, crisp and powerful — ideal for commercial and public projects



Operates Directly on AC 85–265V — No Transformer Required

A major practical advantage of the XPRO Spike Spot is direct connection to AC 85–265V (50/60 Hz) — the wide input voltage range makes this lamp suitable for use across Europe, America and Asia without any modification. No external transformer or driver needed. Simply connect to the existing garden circuit or outdoor socket.



High-Quality Done Driver

The spot is equipped with a Done Driver — a high-quality built-in power supply that absorbs voltage instability and current fluctuations. This protects the LED chip, ensures consistent light output and significantly extends the lifespan. The combination of Bridgelux LED and Done Driver makes this spot exceptionally reliable for long-term outdoor installations.



IP65 — Fully Protected Against Rain and Dust

With an IP65 protection rating, the XPRO Spike Spot is fully protected against dust and water jets from all directions. Suitable for permanent outdoor use in all weather conditions — from heavy rain to frost. The robust die-cast aluminium housing also provides excellent heat dissipation, protecting the LED chip and driver and maximising lifespan.



Spike Mount — Easy and Flexible Placement

The built-in ground spike makes installation effortless: push the spike into the ground, aim the spot at the desired object and it's ready. No tools, no drilling, no complex fixing. The spot can easily be moved or re-aimed — ideal for seasonal lighting, temporary event lighting or gradually refining your garden lighting.



Professional Material Quality

The XPRO Garden Spike Spot is built for long-term professional outdoor use:

•       Housing: die-cast aluminium — robust, corrosion-resistant and excellent heat dissipation

•       LED: 1 × Bridgelux chip — premium American LED for high light output and long lifespan

•       Driver: Done Driver — high-quality built-in power supply for stable performance and additional protection



Applications

The XPRO Garden Spike LED Spot 20W is ideal for a wide range of outdoor applications:

•       Tree lighting — uplighting ornamental garden trees

•       Shrub lighting and accent lighting of low planting

•       Facade lighting and architectural accent lighting

•       Garden and lawn lighting

•       Park lighting and public spaces

•       Driveway and entrance lighting

•       Event and temporary garden lighting

•       Professional landscaping and project lighting



Benefits and Features

✔    Powerful 20W Bridgelux LED — premium chip quality

✔    Direct connection to AC 85–265V — no transformer, suitable worldwide

✔    Choice of 3000K (warm white) or 6000K (cool white)

✔    3 beam angles: 15° / 24° / 36°

✔    CRI ≥80 for true-to-life colour rendering

✔    IP65 — fully protected against rain and dust

✔    Robust die-cast aluminium housing

✔    Built-in high-quality Done Driver

✔    Spike mount — easy to place and reposition

✔    Dimensions: 90 × 165 × 440 mm

✔    Suitable for private and professional use



Technical Specifications

Dimensions	90 × 165 × 440 mm
Mount type	Spike (ground spike)
Power	20W
LED type	1 × Bridgelux chip
Input voltage	AC 85–265V / 50–60Hz
Colour temperature	3000K warm white / 6000K cool white
CRI	≥80
Beam angle	15° / 24° / 36°
Driver	Done Driver (built-in high-quality power supply)
IP rating	IP65
Material	Die-cast aluminium
Application	Garden, lawn, park, facade, tree lighting, driveway
