Proline ultra-thin pool light 220x14 mm - Easy installation

Product description
Experience the magic of atmospherically illuminated swimming with the Proline ultra-thin nicheless pool light. Measuring 220x14mm, this innovative lamp is designed to fit effortlessly into the 1.5-inch thread. Whether you choose the 18w or 25w version, you will always enjoy bright illumination. Available in single colors and RGB options, this lamp offers a wide range of color options to bring your pool to life. With the option to choose two-wire or 4-wire systems, this lamp is also compatible with smart systems. Quality doesn't have to be expensive; these lights offer excellent performance at an affordable price.

Advantages:
- Easy installation without a niche
- Available in different wattages and colors
- Compatible with smart systems
- Affordable quality

Good to know
This pool light is specially designed for easy installation without the need for a niche. Thanks to the versatile color options, you can easily change the atmosphere of your pool. Suitable for both residential and commercial pools, the light is resistant to the elements, giving you years of enjoyment from your purchase.

Summary

- Ultrathin pool light measuring 220x14 mm
- Fits directly into 1.5-inch screw thread
- Available in 18w and 25w
- Single color and RGB options
- Compatible with smart systems

Excellent value for money
With the Proline ultra-thin pool light, you can create a mesmerizing swimming experience no matter the time of day. Add this versatile and durable light to your pool and enjoy the perfect illumination.

Specifications
- Fully resin filled, 100% waterproof.
- Ultra-slim design in. 14 mm thick
- 2 wire external or 5 wire
- Dimension 220mm x 14mm
- Voltage : DC - AC 12V
- Waterproofness : IP68
- Beam angle : 120°
- Temperature working environment : -25°C~45°C
- Wattage : 18 - 25 watts
- Brand LEDs : Epsper 2838
- Light color : Warm white - RGB
- Cable length : 2.5 meters
- Energy class : +A
- Material : Fully resin filled plastic | Anti-UV PC | stainless steel
- Luminous intensity : Warm white 18-25W - 2034-2825 | RGB 18W - 962 | RGB 25W - 1275
- Option also works with wifi control system
- Extremely energy efficient, with a lifespan of possibly up to +-40. 000 hours - Two year warranty

Quality pool lights
At XPRO POOL, we choose quality. The pool lights are made of high-quality ABS and are highly resistant to chemicals and UV-C.

Mounting the pool lights
Mounting the pool lights is very easy. We recommend mounting the pool lights about 55-70 centimeters (from the top of the pool)

If you have any questions before or during the installation, please contact us for free by phone and we will explain it to you in detail. That is much better to convey than working out the whole installation instruction on this online shop. We will be happy to advise you.

important

- The product should not be tested out of the water for more than 3 miniutes.
- A transformer is not included.

Why choose loose pool light controller
When choosing lights for your pool, it is important to think about how you will control the lights. Loose pool light controllers offer a number of advantages that can enhance your pool experience. In our experience, built-in remote controls often don't work properly and cause problems. That's why we supply all of our pool lights without them.

A separate control system for pool lights has several advantages.

Here are some of the reasons why you should consider using an external system:

- Better synchronization: With an external system, you can ensure that all the lights in your pool are perfectly synchronized.
- Fewer failures: Built-in systems can be prone to malfunctions. A separate system tends to be more reliable.
- Flexibility: You can easily upgrade or replace the system without having to replace the entire lamp.

Proline ultra-thin pool light 220x14 mm - Easy installation

Product description
Experience the magic of atmospherically illuminated swimming with the Proline ultra-thin nicheless pool light. Measuring 220x14mm, this innovative lamp is designed to fit effortlessly into the 1.5-inch thread. Whether you choose the 18w or 25w version, you will always enjoy bright illumination. Available in single colors and RGB options, this lamp offers a wide range of color options to bring your pool to life. With the option to choose two-wire or 4-wire systems, this lamp is also compatible with smart systems. Quality doesn't have to be expensive; these lights offer excellent performance at an affordable price.

Advantages:
- Easy installation without a niche
- Available in different wattages and colors
- Compatible with smart systems
- Affordable quality

Good to know
This pool light is specially designed for easy installation without the need for a niche. Thanks to the versatile color options, you can easily change the atmosphere of your pool. Suitable for both residential and commercial pools, the light is resistant to the elements, giving you years of enjoyment from your purchase.

Summary

- Ultrathin pool light measuring 220x14 mm
- Fits directly into 1.5-inch screw thread
- Available in 18w and 25w
- Single color and RGB options
- Compatible with smart systems

Excellent value for money
With the Proline ultra-thin pool light, you can create a mesmerizing swimming experience no matter the time of day. Add this versatile and durable light to your pool and enjoy the perfect illumination.

Specifications
- Fully resin filled, 100% waterproof.
- Ultra-slim design in. 14 mm thick
- 2 wire external or 5 wire
- Dimension 220mm x 14mm
- Voltage : DC - AC 12V
- Waterproofness : IP68
- Beam angle : 120°
- Temperature working environment : -25°C~45°C
- Wattage : 18 - 25 watts
- Brand LEDs : Epsper 2838
- Light color : Warm white - RGB
- Cable length : 2.5 meters
- Energy class : +A
- Material : Fully resin filled plastic | Anti-UV PC | stainless steel
- Luminous intensity : Warm white 18-25W - 2034-2825 | RGB 18W - 962 | RGB 25W - 1275
- Option also works with wifi control system
- Extremely energy efficient, with a lifespan of possibly up to +-40. 000 hours - Two year warranty

Quality pool lights
At XPRO POOL, we choose quality. The pool lights are made of high-quality ABS and are highly resistant to chemicals and UV-C.

Mounting the pool lights
Mounting the pool lights is very easy. We recommend mounting the pool lights about 55-70 centimeters (from the top of the pool)

If you have any questions before or during the installation, please contact us for free by phone and we will explain it to you in detail. That is much better to convey than working out the whole installation instruction on this online shop. We will be happy to advise you.

important

- The product should not be tested out of the water for more than 3 miniutes.
- A transformer is not included.

Why choose loose pool light controller
When choosing lights for your pool, it is important to think about how you will control the lights. Loose pool light controllers offer a number of advantages that can enhance your pool experience. In our experience, built-in remote controls often don't work properly and cause problems. That's why we supply all of our pool lights without them.

A separate control system for pool lights has several advantages.

Here are some of the reasons why you should consider using an external system:

- Better synchronization: With an external system, you can ensure that all the lights in your pool are perfectly synchronized.
- Fewer failures: Built-in systems can be prone to malfunctions. A separate system tends to be more reliable.
- Flexibility: You can easily upgrade or replace the system without having to replace the entire lamp.

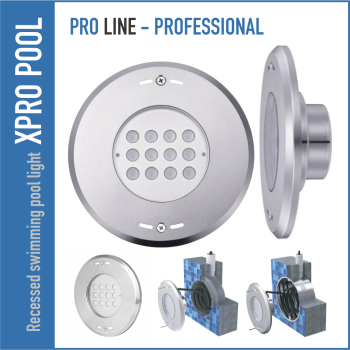

PROLINE PRO Recessed Pool Light Stainless Steel 316L

18W – 25W – 35W | IP68 | 12V/24V AC/DC | Warm White, RGB or RGBW

The PROLINE PRO Recessed Pool Light is a premium lighting solution for private and public swimming pools. Made from high-quality 316L stainless steel and completely resin-filled, this professional pool light combines maximum waterproofing with a clean recessed design. Available in 18W, 25W and 35W and in three light variants — warm white, RGB and RGBW — for the perfect lighting choice in every pool project.

Light Output per Version

The table below shows the light output per wattage and light colour:

Version	18W	25W	35W
Warm white (3000K)	1.872 lm	—	3.270 lm
RGB	936 lm	—	1.635 lm
RGBW	1.062 lm	1.475 lm	—



The lamp is equipped with 12 CREE LED chips — one of the most reliable LED brands in the world. The 60° beam angle ensures wide and even light distribution throughout the pool.

Three Light Variants: Warm White, RGB and RGBW

The PROLINE PRO recessed pool light is available in three versions:

•       Warm white (3000K) — 2-wire connection — clear, calm pool lighting

•       RGB — 4-wire connection — dynamic colour programmes via external Wi-Fi controller or smart system

•       RGBW — 5-wire connection — combination of colour and warm white in one lamp

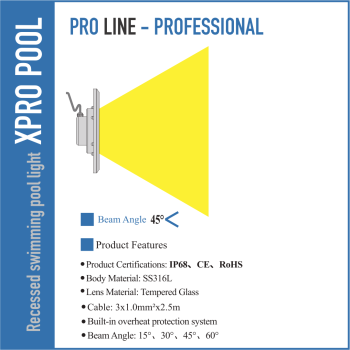

Maximum Waterproofing — IP68

The lamp is completely resin-filled and features an 8 mm thick lens for optimal protection against water pressure and mechanical stress. IP68 guarantees permanent underwater installation. The construction protects against:

•       Water pressure and chlorine

•       Salt and corrosion

•       Temperature fluctuations

•       Mechanical stress

High-Quality Materials

Every component is selected for maximum durability in pool water:

•       Housing: 316L stainless steel — chlorine and salt resistant

•       Lens: Anti-UV PC, 8 mm thick — resistant to water pressure and UV radiation

•       Interior: completely resin-filled — 100% waterproof

Installation and Control

The lamp is suitable for concrete and liner pools and supports three connection types:

•       2-wire — warm white

•       4-wire — RGB (compatible with Wi-Fi controllers and smart systems)

•       5-wire — RGBW

Included cable length: 2.5 metres.

Suitable For

The PROLINE PRO recessed pool light is ideal for:

•       Private pools — concrete and liner

•       Public and commercial pools

•       Spas and wellness pools

•       Overflow and infinity pools

•       Renovation projects

Key Features

✔    Premium recessed pool light — 200 × H75 mm

✔    Power: 18W / 25W / 35W (your choice)

✔    Light output up to 3,270 lm (warm white, 35W)

✔    Warm white (3000K), RGB and RGBW available

✔    RGBW: 5-wire connection

✔    IP68 — fully waterproof, resin-filled

✔    8 mm thick lens against water pressure

✔    12 CREE LED chips

✔    60° beam angle

✔    Voltage: 12V/24V AC/DC

✔    Energy class A+

✔    Lifespan ±40,000 hours

✔    2.5-metre cable included

✔    2-year warranty

Technical Specifications

Model	PROLINE PRO SS 316L
Dimensions	200 × H75 mm
Power	18W / 25W / 35W
Voltage	12V/24V AC/DC
LED chips	12 × CREE
Lm warm white (3000K)	18W: 1,872 lm — 35W: 3,270 lm
Lm RGB	18W: 936 lm — 35W: 1,635 lm
Lm RGBW	18W: 1,062 lm — 25W: 1,475 lm
Beam angle	60°
Lens thickness	8 mm (Anti-UV PC)
Connection	2-wire (WW) / 4-wire (RGB) / 5-wire (RGBW)
Cable	2.5 metres
IP rating	IP68 — fully waterproof
Housing material	316L stainless steel
Interior	Completely resin-filled
Operating temperature	-25°C to +45°C
Energy class	A+
Lifespan	±40,000 hours
Warranty	2 years



Available with Plastic or Stainless Steel Niche

The PROLINE PRO recessed pool light is available with two types of niches for a perfect, clean installation:

•       Plastic niche — lightweight, easy to install, suitable for liner and concrete pools

•       316L stainless steel niche — maximum durability and corrosion resistance, ideal for professional and commercial projects



www.xpropool.com • Specialist in professional LED lighting for swimming pools, ponds, saunas and outdoor spaces

PROLINE PRO Recessed Pool Light Stainless Steel 316L

18W – 25W – 35W | IP68 | 12V/24V AC/DC | Warm White, RGB or RGBW

The PROLINE PRO Recessed Pool Light is a premium lighting solution for private and public swimming pools. Made from high-quality 316L stainless steel and completely resin-filled, this professional pool light combines maximum waterproofing with a clean recessed design. Available in 18W, 25W and 35W and in three light variants — warm white, RGB and RGBW — for the perfect lighting choice in every pool project.

Light Output per Version

The table below shows the light output per wattage and light colour:

Version	18W	25W	35W
Warm white (3000K)	1.872 lm	—	3.270 lm
RGB	936 lm	—	1.635 lm
RGBW	1.062 lm	1.475 lm	—



The lamp is equipped with 12 CREE LED chips — one of the most reliable LED brands in the world. The 60° beam angle ensures wide and even light distribution throughout the pool.

Three Light Variants: Warm White, RGB and RGBW

The PROLINE PRO recessed pool light is available in three versions:

•       Warm white (3000K) — 2-wire connection — clear, calm pool lighting

•       RGB — 4-wire connection — dynamic colour programmes via external Wi-Fi controller or smart system

•       RGBW — 5-wire connection — combination of colour and warm white in one lamp

Maximum Waterproofing — IP68

The lamp is completely resin-filled and features an 8 mm thick lens for optimal protection against water pressure and mechanical stress. IP68 guarantees permanent underwater installation. The construction protects against:

•       Water pressure and chlorine

•       Salt and corrosion

•       Temperature fluctuations

•       Mechanical stress

High-Quality Materials

Every component is selected for maximum durability in pool water:

•       Housing: 316L stainless steel — chlorine and salt resistant

•       Lens: Anti-UV PC, 8 mm thick — resistant to water pressure and UV radiation

•       Interior: completely resin-filled — 100% waterproof

Installation and Control

The lamp is suitable for concrete and liner pools and supports three connection types:

•       2-wire — warm white

•       4-wire — RGB (compatible with Wi-Fi controllers and smart systems)

•       5-wire — RGBW

Included cable length: 2.5 metres.

Suitable For

The PROLINE PRO recessed pool light is ideal for:

•       Private pools — concrete and liner

•       Public and commercial pools

•       Spas and wellness pools

•       Overflow and infinity pools

•       Renovation projects

Key Features

✔    Premium recessed pool light — 200 × H75 mm

✔    Power: 18W / 25W / 35W (your choice)

✔    Light output up to 3,270 lm (warm white, 35W)

✔    Warm white (3000K), RGB and RGBW available

✔    RGBW: 5-wire connection

✔    IP68 — fully waterproof, resin-filled

✔    8 mm thick lens against water pressure

✔    12 CREE LED chips

✔    60° beam angle

✔    Voltage: 12V/24V AC/DC

✔    Energy class A+

✔    Lifespan ±40,000 hours

✔    2.5-metre cable included

✔    2-year warranty

Technical Specifications

Model	PROLINE PRO SS 316L
Dimensions	200 × H75 mm
Power	18W / 25W / 35W
Voltage	12V/24V AC/DC
LED chips	12 × CREE
Lm warm white (3000K)	18W: 1,872 lm — 35W: 3,270 lm
Lm RGB	18W: 936 lm — 35W: 1,635 lm
Lm RGBW	18W: 1,062 lm — 25W: 1,475 lm
Beam angle	60°
Lens thickness	8 mm (Anti-UV PC)
Connection	2-wire (WW) / 4-wire (RGB) / 5-wire (RGBW)
Cable	2.5 metres
IP rating	IP68 — fully waterproof
Housing material	316L stainless steel
Interior	Completely resin-filled
Operating temperature	-25°C to +45°C
Energy class	A+
Lifespan	±40,000 hours
Warranty	2 years



Available with Plastic or Stainless Steel Niche

The PROLINE PRO recessed pool light is available with two types of niches for a perfect, clean installation:

•       Plastic niche — lightweight, easy to install, suitable for liner and concrete pools

•       316L stainless steel niche — maximum durability and corrosion resistance, ideal for professional and commercial projects



www.xpropool.com • Specialist in professional LED lighting for swimming pools, ponds, saunas and outdoor spaces

LED PAR56 Stainless Steel Pool Light PROLINE

The PROLINE LED PAR56 stainless steel pool light is a powerful and energy-efficient replacement for traditional 300W halogen pool lights. Thanks to the standard PAR56 format, this lamp fits in almost all existing PAR56 niches, allowing you to easily upgrade to modern LED pool lighting without modifying the installation.

The lamp operates on safe 12V low voltage (AC/DC) and is fully waterproof according to the IP68 standard, making it suitable for permanent underwater use.

The stainless steel (316L) front housing provides a premium appearance and excellent resistance to chlorine, salt water and UV radiation. This makes the lamp ideal for both chlorine pools and saltwater pools.

The PROLINE series is known for its reliability, long lifespan and professional lighting performance. Perfect for private pools, hotels, wellness centers and professional swimming pool installations.

---

Energy Efficient and Powerful

The PROLINE LED PAR56 pool light consumes up to 90% less energy compared to traditional halogen lights while still delivering a very high light output.

Thanks to the wide 120° beam angle, the swimming pool is illuminated evenly without dark spots. This creates a bright, professional and atmospheric lighting effect with significantly lower energy costs.

---

Memory Function and Easy Color Control

The RGB and RGB+W versions of the PROLINE pool light feature a built-in memory function. This allows the lamp to automatically remember the last selected color or lighting program, even when the power supply is turned off.

When the light is switched on again, it automatically starts with the same color or lighting mode as before.

The color of the lamp can easily be changed by briefly switching the power on and off. With each switch, the lamp automatically moves to the next color or lighting program.

This allows different lighting effects and colors to be selected without the need for an additional controller.

This function is available for both the RGB and RGB+W versions of the PROLINE pool light.

---

Professional Control with Controllers

For even more control, the PROLINE RGB and RGB+W pool lights can also be operated with a professional control system.

We offer several controllers for this purpose:

XPW-1070 – Standard Controller
A reliable controller for simple control of colors and lighting programs.

XPW-1071 – Advanced Controller
Provides more lighting programs and additional configuration options.

XPR-1072 – Smart Controller (Top Model)
This is the most advanced system for two-wire swimming pool lighting.

With this controller you can:

• adjust all colors smoothly
• dim the light intensity
• set multiple lighting programs and scenes
• fully control the lighting smart via app or remote control

All PROLINE pool lights are fully compatible with these controllers.

---

Available Versions

The PROLINE LED PAR56 pool light is available in several lighting options:

Warm White

• bright and natural pool lighting
• ideal for functional lighting

RGB Color

• dynamic color lighting
• perfect for atmosphere and design pools

RGB+W

• color lighting with additional pure white light
• ideal for both atmosphere and functional lighting

Available power options:

25W
35W

---

Technical Specifications

Size
Ø177.8 × 93 mm

Voltage
AC / DC 12V

Waterproof Rating
IP68 (fully submersible)

Beam Angle
120°

Operating Temperature
−25°C to +45°C

LED Type
Epistar SMD 2835

Material
316L Stainless Steel Front + UV-resistant housing

Lifetime
± 40,000 hours

Warranty
2 years

---

Light Output

25W Warm White – 2125 lumen
25W RGB – 1359 lumen
25W RGBW – 1445 lumen

35W Warm White – 2975 lumen
35W RGB – 1750 lumen

---

Why Choose the PROLINE PAR56 Stainless Steel Pool Light?

✔ Fits almost all PAR56 pool niches
✔ Premium 316L stainless steel front housing
✔ Up to 90% energy savings
✔ IP68 fully waterproof
✔ Resistant to chlorine and saltwater
✔ RGB colors with memory function
✔ Operated via switch or professional controller
✔ Compatible with XPW-1070 / XPW-1071 / XPR-1072 systems
✔ Long lifespan up to 40,000 hours

---

Calculate Your Pool Lighting with Our Pool Light Planner

Not sure how many PAR56 pool lights you need for your swimming pool or which power (25W or 35W) is most suitable?

Use our XPRO Pool Lighting Planner. This practical tool allows you to easily calculate how much lighting your swimming pool needs for optimal and even illumination.

The planner takes several factors into account, such as:

• the length and width of the pool
• the depth of the pool
• the type of lighting (warm white or RGB)
• the desired light intensity

Based on this information you will receive an immediate recommendation for the number of lights and the correct wattage.

This ensures that your swimming pool is perfectly illuminated.

👉 Go to our Pool Lighting Planner and easily calculate the lighting you need.

LED PAR56 Stainless Steel Pool Light PROLINE

The PROLINE LED PAR56 stainless steel pool light is a powerful and energy-efficient replacement for traditional 300W halogen pool lights. Thanks to the standard PAR56 format, this lamp fits in almost all existing PAR56 niches, allowing you to easily upgrade to modern LED pool lighting without modifying the installation.

The lamp operates on safe 12V low voltage (AC/DC) and is fully waterproof according to the IP68 standard, making it suitable for permanent underwater use.

The stainless steel (316L) front housing provides a premium appearance and excellent resistance to chlorine, salt water and UV radiation. This makes the lamp ideal for both chlorine pools and saltwater pools.

The PROLINE series is known for its reliability, long lifespan and professional lighting performance. Perfect for private pools, hotels, wellness centers and professional swimming pool installations.

---

Energy Efficient and Powerful

The PROLINE LED PAR56 pool light consumes up to 90% less energy compared to traditional halogen lights while still delivering a very high light output.

Thanks to the wide 120° beam angle, the swimming pool is illuminated evenly without dark spots. This creates a bright, professional and atmospheric lighting effect with significantly lower energy costs.

---

Memory Function and Easy Color Control

The RGB and RGB+W versions of the PROLINE pool light feature a built-in memory function. This allows the lamp to automatically remember the last selected color or lighting program, even when the power supply is turned off.

When the light is switched on again, it automatically starts with the same color or lighting mode as before.

The color of the lamp can easily be changed by briefly switching the power on and off. With each switch, the lamp automatically moves to the next color or lighting program.

This allows different lighting effects and colors to be selected without the need for an additional controller.

This function is available for both the RGB and RGB+W versions of the PROLINE pool light.

---

Professional Control with Controllers

For even more control, the PROLINE RGB and RGB+W pool lights can also be operated with a professional control system.

We offer several controllers for this purpose:

XPW-1070 – Standard Controller
A reliable controller for simple control of colors and lighting programs.

XPW-1071 – Advanced Controller
Provides more lighting programs and additional configuration options.

XPR-1072 – Smart Controller (Top Model)
This is the most advanced system for two-wire swimming pool lighting.

With this controller you can:

• adjust all colors smoothly
• dim the light intensity
• set multiple lighting programs and scenes
• fully control the lighting smart via app or remote control

All PROLINE pool lights are fully compatible with these controllers.

---

Available Versions

The PROLINE LED PAR56 pool light is available in several lighting options:

Warm White

• bright and natural pool lighting
• ideal for functional lighting

RGB Color

• dynamic color lighting
• perfect for atmosphere and design pools

RGB+W

• color lighting with additional pure white light
• ideal for both atmosphere and functional lighting

Available power options:

25W
35W

---

Technical Specifications

Size
Ø177.8 × 93 mm

Voltage
AC / DC 12V

Waterproof Rating
IP68 (fully submersible)

Beam Angle
120°

Operating Temperature
−25°C to +45°C

LED Type
Epistar SMD 2835

Material
316L Stainless Steel Front + UV-resistant housing

Lifetime
± 40,000 hours

Warranty
2 years

---

Light Output

25W Warm White – 2125 lumen
25W RGB – 1359 lumen
25W RGBW – 1445 lumen

35W Warm White – 2975 lumen
35W RGB – 1750 lumen

---

Why Choose the PROLINE PAR56 Stainless Steel Pool Light?

✔ Fits almost all PAR56 pool niches
✔ Premium 316L stainless steel front housing
✔ Up to 90% energy savings
✔ IP68 fully waterproof
✔ Resistant to chlorine and saltwater
✔ RGB colors with memory function
✔ Operated via switch or professional controller
✔ Compatible with XPW-1070 / XPW-1071 / XPR-1072 systems
✔ Long lifespan up to 40,000 hours

---

Calculate Your Pool Lighting with Our Pool Light Planner

Not sure how many PAR56 pool lights you need for your swimming pool or which power (25W or 35W) is most suitable?

Use our XPRO Pool Lighting Planner. This practical tool allows you to easily calculate how much lighting your swimming pool needs for optimal and even illumination.

The planner takes several factors into account, such as:

• the length and width of the pool
• the depth of the pool
• the type of lighting (warm white or RGB)
• the desired light intensity

Based on this information you will receive an immediate recommendation for the number of lights and the correct wattage.

This ensures that your swimming pool is perfectly illuminated.

👉 Go to our Pool Lighting Planner and easily calculate the lighting you need.

The PRO LINE IP68 FLEX COB LED Strip 10×5 mm is a high-quality, fully waterproof lighting solution designed for professional garden, pool, and wellness applications. Thanks to advanced Chip-On-Board (COB) technology, this strip delivers a completely uniform, dot-free light line with a refined matte finish.

The flexible construction and compact 10 × 5 mm profile allow seamless integration into clean architectural lines, edges, and profiles. Manufactured using a dual color silicone glue extrusion process, the strip achieves full IP68 protection, ensuring long-term durability in outdoor and wet environments.

Suitable for:

• Pool edges (inner rim or under coping)

• Garden pathways and terraces

• Facade accent lighting

• Stair edges

• Spa and wellness projects

• Pergolas and outdoor structures

Available custom cut to size or supplied per roll, making it ideal for both bespoke and large-scale installations.

Key Features

✔ FLEX design – easy bending and clean installation
✔ COB technology (480 LEDs/m) – perfectly uniform light, no visible dots
✔ 180° beam angle – wide and even light distribution
✔ IP68 fully waterproof – suitable for outdoor and wet areas
✔ Ultra-slim 10 × 5 mm profile
✔ Matte light emission – soft and professional appearance
✔ Available in single colors and RGB+W
✔ 5-year warranty (PRO LINE quality)

Technical Specifications

• Power: 10W per meter

• Voltage: 24V DC

• LED quantity: 480 LEDs per meter

• Dimensions: 10 × 5 mm

• Copper thickness: 2OZ

• CRI: Ra > 90

• Luminous flux: 750 lm per meter

• Efficiency: 75 lm/W

• Cutting length: 50 mm

• IP rating: IP68

• Working temperature: -25°C to +45°C

• Lifespan: > 50,000 hours

Why choose PRO LINE?

The PRO LINE series has been developed for professional installers, pool builders, and landscape lighting specialists who demand reliability and durability. Thanks to the high color rendering index (Ra>90), stable 24V DC power supply, and 2OZ copper PCB, this strip is designed for long-term and intensive applications.

With a lifespan exceeding 50,000 hours and a 5-year warranty, this FLEX COB strip provides maximum security and long-term performance for every project.

The PRO LINE IP68 FLEX COB LED Strip 10×5 mm is a high-quality, fully waterproof lighting solution designed for professional garden, pool, and wellness applications. Thanks to advanced Chip-On-Board (COB) technology, this strip delivers a completely uniform, dot-free light line with a refined matte finish.

The flexible construction and compact 10 × 5 mm profile allow seamless integration into clean architectural lines, edges, and profiles. Manufactured using a dual color silicone glue extrusion process, the strip achieves full IP68 protection, ensuring long-term durability in outdoor and wet environments.

Suitable for:

• Pool edges (inner rim or under coping)

• Garden pathways and terraces

• Facade accent lighting

• Stair edges

• Spa and wellness projects

• Pergolas and outdoor structures

Available custom cut to size or supplied per roll, making it ideal for both bespoke and large-scale installations.

Key Features

✔ FLEX design – easy bending and clean installation
✔ COB technology (480 LEDs/m) – perfectly uniform light, no visible dots
✔ 180° beam angle – wide and even light distribution
✔ IP68 fully waterproof – suitable for outdoor and wet areas
✔ Ultra-slim 10 × 5 mm profile
✔ Matte light emission – soft and professional appearance
✔ Available in single colors and RGB+W
✔ 5-year warranty (PRO LINE quality)

Technical Specifications

• Power: 10W per meter

• Voltage: 24V DC

• LED quantity: 480 LEDs per meter

• Dimensions: 10 × 5 mm

• Copper thickness: 2OZ

• CRI: Ra > 90

• Luminous flux: 750 lm per meter

• Efficiency: 75 lm/W

• Cutting length: 50 mm

• IP rating: IP68

• Working temperature: -25°C to +45°C

• Lifespan: > 50,000 hours

Why choose PRO LINE?

The PRO LINE series has been developed for professional installers, pool builders, and landscape lighting specialists who demand reliability and durability. Thanks to the high color rendering index (Ra>90), stable 24V DC power supply, and 2OZ copper PCB, this strip is designed for long-term and intensive applications.

With a lifespan exceeding 50,000 hours and a 5-year warranty, this FLEX COB strip provides maximum security and long-term performance for every project.

PROLINE IP68 L SERIES — 24V Neon LED Strip for Swimming Pools

The PROLINE IP68 L SERIES is the professional neon LED strip for swimming pools with high demands on lighting, durability and waterproofing. This 24V neon LED strip is specially developed for large swimming pools and can be supplied in exceptionally long lengths — ideal for pool cages, pool edges, underwater lighting and decorative light lines around the pool.

With an IP68 rating and permanent submersion up to 2 metres depth, this strip ranks among the most waterproof LED solutions on the market. Thanks to the clean neon effect without visible LED dots and availability in single colour, RGB and RGB+W, the PROLINE L SERIES offers maximum design freedom for both commercial and private pool projects.

What is the PROLINE IP68 L SERIES suitable for?

This professional swimming pool LED strip is ideally suited for:

•       Underwater lighting in large indoor and outdoor swimming pools

•       Lighting of pool cages and pool enclosures

•       Accent lighting along pool edges and overflow edges

•       Decorative light lines in spas, wellness centres and hotel pools

•       Projects requiring extra-long strips without soldered connections

What makes the L SERIES special?

The L SERIES is specifically designed for large pool projects. Where standard LED strips are limited in deliverable length, the L SERIES offers the ability to supply significantly longer runs without loss of quality or voltage drop. This makes the strip particularly suitable for professional installers and projects with high demands on light continuity.

The strip is available as a single colour, in RGB and in RGB+W — for those who want to create colour changes and mood scenes in and around the pool.

Clean Neon Effect and Maximum Waterproofing

The PROLINE IP68 L SERIES is made from high-quality silicone and delivers a smooth, flowing neon glow without visible LED dots. This gives a clean and professional result, even at longer distances.

Thanks to the IP68 waterproof rating, the strip is suitable for permanent submersion up to 2 metres depth. The silicone material is fully resistant to chlorine and salt water, ensuring the lighting remains reliable and bright even after years of intensive use.

Easy Installation with Aluminium Profiles

The PROLINE IP68 L SERIES is horizontally flexible with a minimum bending diameter of 200 mm, making installation in curved constructions and round pool edges straightforward.

The strip can be glued, but we recommend using our special aluminium profiles. These profiles ensure a clean, straight line of light and a professional finish. They also provide extra protection and simplify any future maintenance. An aluminium profile makes the difference between ‘good’ and ‘perfect’ in your pool project.

Technical Specifications

Input voltage	DC 24V
Power consumption	15 W per metre
IP rating	IP68 — permanently submerged up to 2 m
Material	High-quality silicone
CRI	90
Luminous flux warm white	480 lumen per metre
Luminous flux RGB	300 lumen per metre
Luminous flux RGB+W	365 lumen per metre
Operating temperature	-25°C to +60°C
Min. bending diameter	200 mm
Cross-section	16 × 16 mm
Version	Single colour / RGB / RGB+W
Certification	CE — UL — RoHS
Lifespan	Up to 50,000 hours
Warranty	3 years

In short: why the PROLINE IP68 L SERIES?

•       IP68 — permanently submerged up to 2 metres depth

•       Designed for large pools: available in extra-long lengths

•       Smooth neon glow without visible LED dots

•       100% resistant to chlorine and salt water

•       Available in single colour, RGB and RGB+W

•       Luminous flux: 480 lm (warm white) — 365 lm (RGB+W) — 300 lm (RGB) per metre

•       Safe 24V DC power supply

•       CRI 90 for true-to-life colour rendering

•       Lifespan up to 50,000 hours — 3-year warranty

•       Available with special aluminium mounting profiles

•       CE, UL and RoHS certified



www.xpropool.com • Specialist in professional LED lighting for swimming pools, saunas and outdoor spaces

PROLINE IP68 L SERIES — 24V Neon LED Strip for Swimming Pools

The PROLINE IP68 L SERIES is the professional neon LED strip for swimming pools with high demands on lighting, durability and waterproofing. This 24V neon LED strip is specially developed for large swimming pools and can be supplied in exceptionally long lengths — ideal for pool cages, pool edges, underwater lighting and decorative light lines around the pool.

With an IP68 rating and permanent submersion up to 2 metres depth, this strip ranks among the most waterproof LED solutions on the market. Thanks to the clean neon effect without visible LED dots and availability in single colour, RGB and RGB+W, the PROLINE L SERIES offers maximum design freedom for both commercial and private pool projects.

What is the PROLINE IP68 L SERIES suitable for?

This professional swimming pool LED strip is ideally suited for:

•       Underwater lighting in large indoor and outdoor swimming pools

•       Lighting of pool cages and pool enclosures

•       Accent lighting along pool edges and overflow edges

•       Decorative light lines in spas, wellness centres and hotel pools

•       Projects requiring extra-long strips without soldered connections

What makes the L SERIES special?

The L SERIES is specifically designed for large pool projects. Where standard LED strips are limited in deliverable length, the L SERIES offers the ability to supply significantly longer runs without loss of quality or voltage drop. This makes the strip particularly suitable for professional installers and projects with high demands on light continuity.

The strip is available as a single colour, in RGB and in RGB+W — for those who want to create colour changes and mood scenes in and around the pool.

Clean Neon Effect and Maximum Waterproofing

The PROLINE IP68 L SERIES is made from high-quality silicone and delivers a smooth, flowing neon glow without visible LED dots. This gives a clean and professional result, even at longer distances.

Thanks to the IP68 waterproof rating, the strip is suitable for permanent submersion up to 2 metres depth. The silicone material is fully resistant to chlorine and salt water, ensuring the lighting remains reliable and bright even after years of intensive use.

Easy Installation with Aluminium Profiles

The PROLINE IP68 L SERIES is horizontally flexible with a minimum bending diameter of 200 mm, making installation in curved constructions and round pool edges straightforward.

The strip can be glued, but we recommend using our special aluminium profiles. These profiles ensure a clean, straight line of light and a professional finish. They also provide extra protection and simplify any future maintenance. An aluminium profile makes the difference between ‘good’ and ‘perfect’ in your pool project.

Technical Specifications

Input voltage	DC 24V
Power consumption	15 W per metre
IP rating	IP68 — permanently submerged up to 2 m
Material	High-quality silicone
CRI	90
Luminous flux warm white	480 lumen per metre
Luminous flux RGB	300 lumen per metre
Luminous flux RGB+W	365 lumen per metre
Operating temperature	-25°C to +60°C
Min. bending diameter	200 mm
Cross-section	16 × 16 mm
Version	Single colour / RGB / RGB+W
Certification	CE — UL — RoHS
Lifespan	Up to 50,000 hours
Warranty	3 years

In short: why the PROLINE IP68 L SERIES?

•       IP68 — permanently submerged up to 2 metres depth

•       Designed for large pools: available in extra-long lengths

•       Smooth neon glow without visible LED dots

•       100% resistant to chlorine and salt water

•       Available in single colour, RGB and RGB+W

•       Luminous flux: 480 lm (warm white) — 365 lm (RGB+W) — 300 lm (RGB) per metre

•       Safe 24V DC power supply

•       CRI 90 for true-to-life colour rendering

•       Lifespan up to 50,000 hours — 3-year warranty

•       Available with special aluminium mounting profiles

•       CE, UL and RoHS certified



www.xpropool.com • Specialist in professional LED lighting for swimming pools, saunas and outdoor spaces

The PAR56 Easy Connect from XPRO Pool Lighting B.V. is designed for professionals who want top quality and easy installation in one.
With its built-in connector, the lamp connects in seconds — simply insert the cable, tighten, and it’s ready. No sealing, no resin, no tools required.

This lamp is fully resin-filled and IP68 waterproof, ensuring long-term durability even under demanding pool conditions.
The EPSTAR LED chips deliver excellent brightness and energy efficiency with a 120° beam angle.
Thanks to its ultra-slim design (176 × 93 mm), it fits perfectly in most standard PAR56 niches.

Available in single color (warm white or blue) and RGB versions, with power options of 25 W or 35 W.
The light operates on DC 12 V or AC 12 V, suitable for nearly all pool lighting systems.
Also compatible with smart-control systems for modern installations.

⚙️ Technical Information

• Model: PAR56 Easy Connect

• Dimensions: Ø 176 mm × 93 mm

• Design: Ultra-slim, fully resin-filled

• Waterproof rating: IP68 – 100 % waterproof

• Connection: 2-wire external connector

• Power: 25 W / 35 W

• LED quantity: 90 pcs

• LED brand: EPSTAR

• Voltage: DC 12 V / AC 12 V

• Light colors: Warm White / Blue / RGB

• Beam angle: 120°

• Operating temperature: −25 °C ~ 45 °C

• Warranty: 2 years

• Smart system compatible: Yes

💡 Key Advantages

✔ Quick Plug & Play installation – no sealing materials needed
✔ 100 % waterproof (IP68) and resin-filled construction
✔ High-quality EPSTAR LEDs with strong light output
✔ Fits standard PAR56 niches
✔ Reliable, durable and energy-efficient performance

XPRO Pool Lighting B.V. continues to innovate, creating professional pool lighting solutions that combine design, reliability and simplicity — made for installers who value quality and efficiency.

The PAR56 Easy Connect from XPRO Pool Lighting B.V. is designed for professionals who want top quality and easy installation in one.
With its built-in connector, the lamp connects in seconds — simply insert the cable, tighten, and it’s ready. No sealing, no resin, no tools required.

This lamp is fully resin-filled and IP68 waterproof, ensuring long-term durability even under demanding pool conditions.
The EPSTAR LED chips deliver excellent brightness and energy efficiency with a 120° beam angle.
Thanks to its ultra-slim design (176 × 93 mm), it fits perfectly in most standard PAR56 niches.

Available in single color (warm white or blue) and RGB versions, with power options of 25 W or 35 W.
The light operates on DC 12 V or AC 12 V, suitable for nearly all pool lighting systems.
Also compatible with smart-control systems for modern installations.

⚙️ Technical Information

• Model: PAR56 Easy Connect

• Dimensions: Ø 176 mm × 93 mm

• Design: Ultra-slim, fully resin-filled

• Waterproof rating: IP68 – 100 % waterproof

• Connection: 2-wire external connector

• Power: 25 W / 35 W

• LED quantity: 90 pcs

• LED brand: EPSTAR

• Voltage: DC 12 V / AC 12 V

• Light colors: Warm White / Blue / RGB

• Beam angle: 120°

• Operating temperature: −25 °C ~ 45 °C

• Warranty: 2 years

• Smart system compatible: Yes

💡 Key Advantages

✔ Quick Plug & Play installation – no sealing materials needed
✔ 100 % waterproof (IP68) and resin-filled construction
✔ High-quality EPSTAR LEDs with strong light output
✔ Fits standard PAR56 niches
✔ Reliable, durable and energy-efficient performance

XPRO Pool Lighting B.V. continues to innovate, creating professional pool lighting solutions that combine design, reliability and simplicity — made for installers who value quality and efficiency.

The PROLINE LED PAR56 pool light is a powerful and energy-efficient replacement for traditional 300W halogen swimming pool lamps. Thanks to the standard PAR56 size, this lamp fits almost all existing PAR56 niches and housings, allowing you to upgrade to modern LED pool lighting without modifying the installation.

The lamp operates on safe 12V low voltage (AC/DC) and is fully waterproof according to IP68 standards. The high-quality ABS + UV resistant housing is resistant to chlorine, salt water and UV radiation, making it suitable for both chlorine pools and saltwater pools.

The PROLINE series is known for its reliability, long lifespan and professional lighting performance. Perfect for private pools, hotels, wellness centers and professional pool installations.

---

Energy Efficient and Powerful

The PROLINE LED PAR56 pool lamp consumes up to 90% less energy compared to traditional halogen lamps while still delivering a high light output.

Thanks to the 120° wide beam angle, the pool is evenly illuminated without dark spots, creating a bright and professional underwater lighting effect while significantly reducing energy consumption.

---

Suitable for Large Swimming Pools

The PROLINE LED PAR56 pool light is also widely used in larger swimming pools and professional installations. This is because the lamp is available up to 50W with a high lumen output, making it powerful enough to illuminate even large pools.

The 50W version provides strong illumination and is ideal for:

• large private pools

• hotel swimming pools

• wellness and spa installations

• public swimming pools

---

Advanced Water Cooling for Longer Lifespan

An important feature of the PROLINE PAR56 pool light is the intelligent housing design. At the back of the lamp there are special openings that allow water to circulate around the fixture.

This creates natural water cooling, which offers several advantages:

✔ improved heat dissipation
✔ stable LED performance
✔ higher efficiency
✔ significantly longer lamp lifespan

Because LEDs perform best at lower temperatures, this cooling system helps guarantee a lifespan of up to 40,000 hours.

---

Memory Function and Easy Color Switching

The RGB version of the PROLINE pool light features a built-in memory chip. This allows the lamp to automatically remember the last selected color or lighting program, even after the power has been switched off.

When the light is turned on again, it will start with the same color that was used previously.

The color can also be changed easily by switching the power on and off. Each time the power is toggled, the lamp automatically switches to the next color or lighting mode.

This allows you to control the colors even without a controller.

---

Professional Control with Lighting Controllers

For more advanced control, the PROLINE RGB pool lights can also be operated using a professional control system.

We offer several controller options:

XPW-1070 – Standard Controller
A reliable controller for basic color and lighting program control.

XPW-1071 – Luxury Controller
Extended control with more lighting programs and advanced functions.

XPR-1072 – Smart Controller (Top Model)
The most advanced controller for two-wire pool lighting systems.

With this controller you can:

• adjust all colors smoothly and continuously

• dim the light intensity

• create custom lighting programs and scenes

• operate the lighting through a smart system

All PROLINE pool lights are fully compatible with these controllers.

---

Available Versions

The LED PAR56 pool light is available in two lighting options:

Warm White

• clear and natural pool lighting

• perfect for functional illumination

RGB Color

• dynamic color lighting

• ideal for atmosphere and design pools

Available power options:

25W
35W
50W

---

Technical Specifications

Size
177 x 114 mm

Voltage
AC / DC 12V

Waterproof rating
IP68 (fully submersible)

Beam angle
120°

Operating temperature
−25°C to +45°C

LED type
Epsper SMD 2835

Material
ABS + UV resistant

Lifespan
± 40,000 hours

Warranty
2 years

---

Light Output

25W Warm White – 2125 lumens
25W RGB – 1359 lumens

35W Warm White – 2975 lumens
35W RGB – 1750 lumens

50W Warm White – 4250 lumens
50W RGB – 2400 lumens

---

Why Choose the PROLINE PAR56 Pool Light?

✔ Fits almost all PAR56 pool niches
✔ Up to 90% energy saving
✔ Fully waterproof IP68
✔ Resistant to chlorine and salt water
✔ RGB color memory function
✔ Operated via switch or professional controller
✔ Compatible with XPW-1070 / XPW-1071 / XPR-1072 systems
✔ Long lifespan up to 40,000 hours

---

Calculate Your Pool Lighting with Our Pool Light Planner

Not sure how many PAR56 pool lights you need or which power (25W, 35W or 50W) is best for your swimming pool?

Use our XPRO Pool Lighting Planner. With this tool you can easily calculate the ideal lighting setup for your pool to achieve perfect and even illumination.

The planner takes several factors into account:

• pool length and width

• pool depth

• type of lighting (warm white or RGB)

• desired light intensity

Based on this information you will immediately receive an advice on the number of lamps and the required wattage.

👉 Use our Pool Lighting Planner to calculate the perfect lighting for your pool.

The PROLINE LED PAR56 pool light is a powerful and energy-efficient replacement for traditional 300W halogen swimming pool lamps. Thanks to the standard PAR56 size, this lamp fits almost all existing PAR56 niches and housings, allowing you to upgrade to modern LED pool lighting without modifying the installation.

The lamp operates on safe 12V low voltage (AC/DC) and is fully waterproof according to IP68 standards. The high-quality ABS + UV resistant housing is resistant to chlorine, salt water and UV radiation, making it suitable for both chlorine pools and saltwater pools.

The PROLINE series is known for its reliability, long lifespan and professional lighting performance. Perfect for private pools, hotels, wellness centers and professional pool installations.

---

Energy Efficient and Powerful

The PROLINE LED PAR56 pool lamp consumes up to 90% less energy compared to traditional halogen lamps while still delivering a high light output.

Thanks to the 120° wide beam angle, the pool is evenly illuminated without dark spots, creating a bright and professional underwater lighting effect while significantly reducing energy consumption.

---

Suitable for Large Swimming Pools

The PROLINE LED PAR56 pool light is also widely used in larger swimming pools and professional installations. This is because the lamp is available up to 50W with a high lumen output, making it powerful enough to illuminate even large pools.

The 50W version provides strong illumination and is ideal for:

• large private pools

• hotel swimming pools

• wellness and spa installations

• public swimming pools

---

Advanced Water Cooling for Longer Lifespan

An important feature of the PROLINE PAR56 pool light is the intelligent housing design. At the back of the lamp there are special openings that allow water to circulate around the fixture.

This creates natural water cooling, which offers several advantages:

✔ improved heat dissipation
✔ stable LED performance
✔ higher efficiency
✔ significantly longer lamp lifespan

Because LEDs perform best at lower temperatures, this cooling system helps guarantee a lifespan of up to 40,000 hours.

---

Memory Function and Easy Color Switching

The RGB version of the PROLINE pool light features a built-in memory chip. This allows the lamp to automatically remember the last selected color or lighting program, even after the power has been switched off.

When the light is turned on again, it will start with the same color that was used previously.

The color can also be changed easily by switching the power on and off. Each time the power is toggled, the lamp automatically switches to the next color or lighting mode.

This allows you to control the colors even without a controller.

---

Professional Control with Lighting Controllers

For more advanced control, the PROLINE RGB pool lights can also be operated using a professional control system.

We offer several controller options:

XPW-1070 – Standard Controller
A reliable controller for basic color and lighting program control.

XPW-1071 – Luxury Controller
Extended control with more lighting programs and advanced functions.

XPR-1072 – Smart Controller (Top Model)
The most advanced controller for two-wire pool lighting systems.

With this controller you can:

• adjust all colors smoothly and continuously

• dim the light intensity

• create custom lighting programs and scenes

• operate the lighting through a smart system

All PROLINE pool lights are fully compatible with these controllers.

---

Available Versions

The LED PAR56 pool light is available in two lighting options:

Warm White

• clear and natural pool lighting

• perfect for functional illumination

RGB Color

• dynamic color lighting

• ideal for atmosphere and design pools

Available power options:

25W
35W
50W

---

Technical Specifications

Size
177 x 114 mm

Voltage
AC / DC 12V

Waterproof rating
IP68 (fully submersible)

Beam angle
120°

Operating temperature
−25°C to +45°C

LED type
Epsper SMD 2835

Material
ABS + UV resistant

Lifespan
± 40,000 hours

Warranty
2 years

---

Light Output

25W Warm White – 2125 lumens
25W RGB – 1359 lumens

35W Warm White – 2975 lumens
35W RGB – 1750 lumens

50W Warm White – 4250 lumens
50W RGB – 2400 lumens

---

Why Choose the PROLINE PAR56 Pool Light?

✔ Fits almost all PAR56 pool niches
✔ Up to 90% energy saving
✔ Fully waterproof IP68
✔ Resistant to chlorine and salt water
✔ RGB color memory function
✔ Operated via switch or professional controller
✔ Compatible with XPW-1070 / XPW-1071 / XPR-1072 systems
✔ Long lifespan up to 40,000 hours

---

Calculate Your Pool Lighting with Our Pool Light Planner

Not sure how many PAR56 pool lights you need or which power (25W, 35W or 50W) is best for your swimming pool?

Use our XPRO Pool Lighting Planner. With this tool you can easily calculate the ideal lighting setup for your pool to achieve perfect and even illumination.

The planner takes several factors into account:

• pool length and width

• pool depth

• type of lighting (warm white or RGB)

• desired light intensity

Based on this information you will immediately receive an advice on the number of lamps and the required wattage.

👉 Use our Pool Lighting Planner to calculate the perfect lighting for your pool.

ProLine Ultra Thin Fiberglass Pool Light 18W / 25W

The ultra thin fiberglass pool light 18W 25W delivers a modern and minimalistic finish. With only 12 mm thickness and 260 mm diameter, it blends perfectly into the pool wall.

The standard 2 inch thread allows easy installation in fiberglass and liner pools.

Warm white or RGB

Available in:

Warm white for calm lighting
RGB for dynamic color effects

18W and 25W versions available.
120° beam angle ensures even illumination.

Durable and safe

Fully resin filled and IP68 waterproof.
Operates on safe AC/DC 12V low voltage.
Resistant to chlorine and UV.

Technical specifications

Size 260 x 12 mm
Power 18W / 25W
LED type Epsper 2835
LED quantity 252 – 331
Voltage AC/DC 12V
IP68
Beam angle 120°
Cable 2.5 meters
Operating temp −25°C to +45°C
Lifetime ±40,000 hours
2 year warranty

ProLine Ultra Thin Fiberglass Pool Light 18W / 25W

The ultra thin fiberglass pool light 18W 25W delivers a modern and minimalistic finish. With only 12 mm thickness and 260 mm diameter, it blends perfectly into the pool wall.

The standard 2 inch thread allows easy installation in fiberglass and liner pools.

Warm white or RGB

Available in:

Warm white for calm lighting
RGB for dynamic color effects

18W and 25W versions available.
120° beam angle ensures even illumination.

Durable and safe

Fully resin filled and IP68 waterproof.
Operates on safe AC/DC 12V low voltage.
Resistant to chlorine and UV.

Technical specifications

Size 260 x 12 mm
Power 18W / 25W
LED type Epsper 2835
LED quantity 252 – 331
Voltage AC/DC 12V
IP68
Beam angle 120°
Cable 2.5 meters
Operating temp −25°C to +45°C
Lifetime ±40,000 hours
2 year warranty

Proline Ultra Thin Stainless Steel 316L Pool Light 9W – 9mm – IP68

The Proline ultra thin stainless steel 316L pool light is a stylish and professional solution for modern swimming pools. With a thickness of only 9 mm, this light is extremely slim and ideal for a minimal finish. The polished stainless steel 316L housing provides excellent resistance against chlorine, salt and UV exposure.

The light is fully resin filled and rated IP68. This ensures safe and long-lasting underwater performance. The wide 120° beam angle delivers uniform and efficient illumination.

Available in warm white or RGB. Warm white provides clear and natural lighting. RGB offers dynamic color programs and atmospheric effects. The warm white version uses a 2-wire connection. The RGB version uses a 4-wire connection and is compatible with external wifi controllers and smart systems.

Suitable for concrete and liner pools.

Technical specifications

Size 105 x H9 mm
Thickness 9 mm
Power 9 Watt
Voltage 12/24V DC
IP68 waterproof
Beam angle 120°
Operating temperature −25°C to +45°C
LED type SMD3030 (EPISTAR)
Cable length 2 meters
Energy class A+
Material stainless steel 316L | resin-filled plastic | Anti UV PC
Lifetime ± 40,000 hours
2 year warranty

Important: do not test outside water for more than 45 seconds. Transformer not included.

Proline Ultra Thin Stainless Steel 316L Pool Light 9W – 9mm – IP68

The Proline ultra thin stainless steel 316L pool light is a stylish and professional solution for modern swimming pools. With a thickness of only 9 mm, this light is extremely slim and ideal for a minimal finish. The polished stainless steel 316L housing provides excellent resistance against chlorine, salt and UV exposure.

The light is fully resin filled and rated IP68. This ensures safe and long-lasting underwater performance. The wide 120° beam angle delivers uniform and efficient illumination.

Available in warm white or RGB. Warm white provides clear and natural lighting. RGB offers dynamic color programs and atmospheric effects. The warm white version uses a 2-wire connection. The RGB version uses a 4-wire connection and is compatible with external wifi controllers and smart systems.

Suitable for concrete and liner pools.

Technical specifications

Size 105 x H9 mm
Thickness 9 mm
Power 9 Watt
Voltage 12/24V DC
IP68 waterproof
Beam angle 120°
Operating temperature −25°C to +45°C
LED type SMD3030 (EPISTAR)
Cable length 2 meters
Energy class A+
Material stainless steel 316L | resin-filled plastic | Anti UV PC
Lifetime ± 40,000 hours
2 year warranty

Important: do not test outside water for more than 45 seconds. Transformer not included.

High-quality stainless steel LED pool lights: the perfect alternative to Pentair IntelliBrite
Transform your pool experience with our premium stainless steel LED pool lights, an excellent alternative to the Pentair IntelliBrite series.

Key features and benefits:
· Made of high-quality stainless steel for years of durability
· Available as a separate lamp or complete with stainless steel niche
· Choice of single-color or RGB lighting for the perfect ambiance
· Various power options: 12W, 35W or 50W
· Fully compatible with existing Pentair and Hayward systems
· Easy installation and maintenance

Versatile compatibility
Our LED pool lighting is designed as a direct replacement for various Pentair models, including the 6000XX, 6001XX, 6002XX, 601XXX, 783XXXXX, 784XXXXX, 788XXXXX and 789XXXXX. You don't have to worry about compatibility - our lights fit seamlessly into existing Pentair niches (620004, 792067XX, 7821XXX, 7822XXXX, 7823XXXX) and are also compatible with Hayward niches from the SP060XX series, including the specific models SP0601U and SP0606C.

Flexible options for every pool style
Whether you choose the subtle elegance of a single color or the dynamic possibilities of RGB lighting, our pool lights offer the perfect solution. With different power options, you can choose exactly the right brightness for your pool, whether you want atmospheric evening lighting or bright functional lighting.

Durable quality
The high-quality stainless steel construction not only guarantees a stylish appearance, but also offers exceptional protection against the challenging conditions in swimming pool water. These lamps are designed to last for years, even with intensive use, ensuring you a reliable and sustainable lighting solution for your pool.

Easy installation
Thanks to its compatibility with existing systems, you can easily install our LED lighting to replace your current lights without having to make drastic changes to your pool.

Upgrade your pool experience today
Give your pool the premium lighting it deserves. Order our high-quality stainless steel LED pool lighting now and enjoy the perfect combination of style, durability and energy-efficient performance. Contact us for personal advice on the best option for your specific situation.

Specifications
- 2 - 4 wire external
- Size 258 x 29 mm
- Voltage : 12V, 24V (AC, DC)
- Waterproof rating: IP68
- Beam angle: 120°
- Operating ambient temperature: -25°C~45°C
- Wattage : 18-35-50 Watt
- Number of LEDs : 261 - 351 - 441 pieces
- LED brand : Epsper
- Light color : Single color and RGB
- Cable length: 3 meters
- Energy class: +A
- Material: Fully resin-filled plastic | Anti-UV PC
- Brightness: 18W- 1908 35W- 2575 50W- 3500 lumens. RGB 18W- 936 35W- 1250 50W- 1610 Lumen. - Option to also work with Wi-Fi control system - Extremely energy efficient, with a lifespan of up to +-40,000 hours - Two-year warranty

High-quality stainless steel LED pool lights: the perfect alternative to Pentair IntelliBrite
Transform your pool experience with our premium stainless steel LED pool lights, an excellent alternative to the Pentair IntelliBrite series.

Key features and benefits:
· Made of high-quality stainless steel for years of durability
· Available as a separate lamp or complete with stainless steel niche
· Choice of single-color or RGB lighting for the perfect ambiance
· Various power options: 12W, 35W or 50W
· Fully compatible with existing Pentair and Hayward systems
· Easy installation and maintenance

Versatile compatibility
Our LED pool lighting is designed as a direct replacement for various Pentair models, including the 6000XX, 6001XX, 6002XX, 601XXX, 783XXXXX, 784XXXXX, 788XXXXX and 789XXXXX. You don't have to worry about compatibility - our lights fit seamlessly into existing Pentair niches (620004, 792067XX, 7821XXX, 7822XXXX, 7823XXXX) and are also compatible with Hayward niches from the SP060XX series, including the specific models SP0601U and SP0606C.

Flexible options for every pool style
Whether you choose the subtle elegance of a single color or the dynamic possibilities of RGB lighting, our pool lights offer the perfect solution. With different power options, you can choose exactly the right brightness for your pool, whether you want atmospheric evening lighting or bright functional lighting.

Durable quality
The high-quality stainless steel construction not only guarantees a stylish appearance, but also offers exceptional protection against the challenging conditions in swimming pool water. These lamps are designed to last for years, even with intensive use, ensuring you a reliable and sustainable lighting solution for your pool.

Easy installation
Thanks to its compatibility with existing systems, you can easily install our LED lighting to replace your current lights without having to make drastic changes to your pool.

Upgrade your pool experience today
Give your pool the premium lighting it deserves. Order our high-quality stainless steel LED pool lighting now and enjoy the perfect combination of style, durability and energy-efficient performance. Contact us for personal advice on the best option for your specific situation.

Specifications
- 2 - 4 wire external
- Size 258 x 29 mm
- Voltage : 12V, 24V (AC, DC)
- Waterproof rating: IP68
- Beam angle: 120°
- Operating ambient temperature: -25°C~45°C
- Wattage : 18-35-50 Watt
- Number of LEDs : 261 - 351 - 441 pieces
- LED brand : Epsper
- Light color : Single color and RGB
- Cable length: 3 meters
- Energy class: +A
- Material: Fully resin-filled plastic | Anti-UV PC
- Brightness: 18W- 1908 35W- 2575 50W- 3500 lumens. RGB 18W- 936 35W- 1250 50W- 1610 Lumen. - Option to also work with Wi-Fi control system - Extremely energy efficient, with a lifespan of up to +-40,000 hours - Two-year warranty

PRO LINE Underwater Spot Stainless Steel 316L Ø180 mm

12W – 18W – 25W | IP68 | 12V AC/DC | Warm White or RGB

The PRO LINE Underwater Spot Ø180 mm is a powerful professional LED underwater lamp for ponds, swimming pools, fountains and architectural water projects. With its wide Ø180 mm diameter, a slim height of just 47 mm, 9 Epistar LED chips and a 316L stainless steel housing completely filled with resin, this spot delivers maximum light output at minimal installation depth. Available in three wattages — 12W, 18W and 25W — for the right light level in every project.



Light Output per Version

Choose the wattage that suits your project. The table below shows the light output per version:



Version	12W	18W	25W
Warm white	1.008 lm	1.458 lm	1.876 lm
RGB	540 lm	846 lm	1.075 lm



The spot is equipped with 9 Epistar LED chips — reliable, energy-efficient and with stable light output. The 60° beam angle ensures wide and even light distribution across the water feature.



Warm White or RGB Lighting

The PRO LINE Ø180 mm is available in two light variants:

•       Warm white — for atmospheric and natural lighting of ponds and pools

•       RGB — for dynamic colour effects, optionally controlled via Wi-Fi or smart control (4-wire connection)



Maximum Waterproofing — IP68

The interior is completely filled with resin, making the spot 100% waterproof and suitable for permanent underwater installation. The IP68 rating guarantees protection against:

•       Water pressure

•       Dirt and moisture

•       Temperature fluctuations

•       Mechanical stress



Durable Materials for Intensive Use

The PRO LINE underwater spot is built for demanding environments:

•       Housing: 316L stainless steel — excellent corrosion resistance, also in salt and chlorinated water

•       Front and body: Anti-UV PC — resistant to UV radiation and discolouration

•       Interior: completely resin-filled — optimal protection and heat dissipation



Flexible Installation and Smart Control

The spot supports two connection types:

•       2-wire — standard connection for warm white lighting

•       4-wire — for RGB smart control via Wi-Fi or remote

The included 2-metre connection cable makes installation easy and flexible, even in hard-to-reach locations.



Suitable For

Thanks to its powerful light output and robust construction, this spot is ideal for:

•       Pond lighting

•       Swimming pool lighting

•       Fountain and waterfall lighting

•       Decorative water features and garden projects

•       Architectural water installations

•       Professional landscaping projects



Key Features

✔    Powerful underwater spot — Ø180 × 47 mm (wide, low-profile design)

✔    Power: 12W / 18W / 25W (your choice)

✔    Light output up to 1,876 lm (warm white, 25W)

✔    Warm white or RGB lighting

✔    IP68 — fully waterproof, completely resin-filled

✔    9 Epistar LED chips per spot

✔    60° beam angle for wide, even light distribution

✔    Safe 12V AC/DC power supply

✔    2-wire (standard) or 4-wire (RGB smart control)

✔    Energy class A+

✔    Lifespan up to approx. 50,000 hours

✔    2-metre connection cable included

✔    2-year warranty



Technical Specifications

Model	PRO LINE HJ-SL180
Dimensions	Ø180 × 47 mm
Power	12W / 18W / 25W
Voltage	AC 12V / DC 12V
Light output warm white	12W: 1,008 lm — 18W: 1,458 lm — 25W: 1,876 lm
Light output RGB	12W: 540 lm — 18W: 846 lm — 25W: 1,075 lm
Beam angle	60°
LED chips	9 × Epistar
Connection	2-wire / 4-wire (RGB)
Cable	2 metres
IP rating	IP68 — fully waterproof
Housing material	316L stainless steel
Front/body material	Anti-UV PC
Interior	Completely resin-filled
Operating temperature	-25°C to +45°C
Energy class	A+
Lifespan	Up to approx. 50,000 hours
Warranty	2 years







www.xpropool.com • Specialist in professional LED lighting for swimming pools, ponds, saunas and outdoor spaces

PRO LINE Underwater Spot Stainless Steel 316L Ø180 mm

12W – 18W – 25W | IP68 | 12V AC/DC | Warm White or RGB

The PRO LINE Underwater Spot Ø180 mm is a powerful professional LED underwater lamp for ponds, swimming pools, fountains and architectural water projects. With its wide Ø180 mm diameter, a slim height of just 47 mm, 9 Epistar LED chips and a 316L stainless steel housing completely filled with resin, this spot delivers maximum light output at minimal installation depth. Available in three wattages — 12W, 18W and 25W — for the right light level in every project.



Light Output per Version

Choose the wattage that suits your project. The table below shows the light output per version:



Version	12W	18W	25W
Warm white	1.008 lm	1.458 lm	1.876 lm
RGB	540 lm	846 lm	1.075 lm



The spot is equipped with 9 Epistar LED chips — reliable, energy-efficient and with stable light output. The 60° beam angle ensures wide and even light distribution across the water feature.



Warm White or RGB Lighting

The PRO LINE Ø180 mm is available in two light variants:

•       Warm white — for atmospheric and natural lighting of ponds and pools

•       RGB — for dynamic colour effects, optionally controlled via Wi-Fi or smart control (4-wire connection)



Maximum Waterproofing — IP68

The interior is completely filled with resin, making the spot 100% waterproof and suitable for permanent underwater installation. The IP68 rating guarantees protection against:

•       Water pressure

•       Dirt and moisture

•       Temperature fluctuations

•       Mechanical stress



Durable Materials for Intensive Use

The PRO LINE underwater spot is built for demanding environments:

•       Housing: 316L stainless steel — excellent corrosion resistance, also in salt and chlorinated water

•       Front and body: Anti-UV PC — resistant to UV radiation and discolouration

•       Interior: completely resin-filled — optimal protection and heat dissipation



Flexible Installation and Smart Control

The spot supports two connection types:

•       2-wire — standard connection for warm white lighting

•       4-wire — for RGB smart control via Wi-Fi or remote

The included 2-metre connection cable makes installation easy and flexible, even in hard-to-reach locations.



Suitable For

Thanks to its powerful light output and robust construction, this spot is ideal for:

•       Pond lighting

•       Swimming pool lighting

•       Fountain and waterfall lighting

•       Decorative water features and garden projects

•       Architectural water installations

•       Professional landscaping projects



Key Features

✔    Powerful underwater spot — Ø180 × 47 mm (wide, low-profile design)

✔    Power: 12W / 18W / 25W (your choice)

✔    Light output up to 1,876 lm (warm white, 25W)

✔    Warm white or RGB lighting

✔    IP68 — fully waterproof, completely resin-filled

✔    9 Epistar LED chips per spot

✔    60° beam angle for wide, even light distribution

✔    Safe 12V AC/DC power supply

✔    2-wire (standard) or 4-wire (RGB smart control)

✔    Energy class A+

✔    Lifespan up to approx. 50,000 hours

✔    2-metre connection cable included

✔    2-year warranty



Technical Specifications

Model	PRO LINE HJ-SL180
Dimensions	Ø180 × 47 mm
Power	12W / 18W / 25W
Voltage	AC 12V / DC 12V
Light output warm white	12W: 1,008 lm — 18W: 1,458 lm — 25W: 1,876 lm
Light output RGB	12W: 540 lm — 18W: 846 lm — 25W: 1,075 lm
Beam angle	60°
LED chips	9 × Epistar
Connection	2-wire / 4-wire (RGB)
Cable	2 metres
IP rating	IP68 — fully waterproof
Housing material	316L stainless steel
Front/body material	Anti-UV PC
Interior	Completely resin-filled
Operating temperature	-25°C to +45°C
Energy class	A+
Lifespan	Up to approx. 50,000 hours
Warranty	2 years







www.xpropool.com • Specialist in professional LED lighting for swimming pools, ponds, saunas and outdoor spaces

PRO LINE Underwater Spot Stainless Steel 316L Ø146 mm

9W – 18W – 25W | IP68 | 12V AC/DC | Warm White or RGB

The PRO LINE Underwater Spot Ø146 mm is a powerful professional LED underwater lamp for ponds, swimming pools, fountains and architectural water projects. With 9 Epistar LED chips, a robust 316L stainless steel housing and a completely resin-filled interior, this spot offers maximum waterproofing, corrosion resistance and a long lifespan. Available in three wattages — 9W, 18W and 25W — for the right light level in every application.



Light Output per Version

Choose the wattage that suits your project. The table below shows the light output per version:



Version	9W	18W	25W
Warm white	756 lm	1,314 lm	1,725 lm
RGB	404 lm	702 lm	875 lm



The spot is equipped with 9 Epistar LED chips — a reliable brand known for energy efficiency and stable light output. Thanks to the 60° beam angle, light is spread wide and evenly across the water feature.



Warm White or RGB Lighting

The PRO LINE Ø146 mm is available in two light variants:

•       Warm white — for atmospheric, natural lighting of ponds and pools

•       RGB — for dynamic colour effects, optionally controlled via Wi-Fi or smart control (4-wire connection)



Maximum Waterproofing — IP68

The interior is completely filled with resin, making the spot 100% waterproof and suitable for permanent underwater installation. The IP68 rating guarantees protection against:

•       Water pressure

•       Dirt and moisture

•       Temperature fluctuations

•       Mechanical stress



Durable Materials for Intensive Use

The PRO LINE underwater spot is built for demanding environments:

•       Housing: 316L stainless steel — excellent corrosion resistance, also in salt and chlorinated water

•       Front and body: Anti-UV PC — resistant to UV radiation and discolouration

•       Interior: completely resin-filled — optimal protection and heat dissipation



Flexible Installation and Smart Control

The spot supports two connection types:

•       2-wire — standard connection for warm white lighting

•       4-wire — for RGB smart control via Wi-Fi or remote

The included 2-metre connection cable makes installation easy and flexible, even in hard-to-reach locations.



Suitable For

Thanks to its powerful light output and robust construction, this spot is ideal for:

•       Pond lighting

•       Swimming pool lighting

•       Fountain and waterfall lighting

•       Decorative water features and garden projects

•       Architectural water installations

•       Professional landscaping projects



Key Features

✔    Powerful underwater spot — Ø146 × 126 × 180 mm

✔    Power: 9W / 18W / 25W (your choice)

✔    Light output up to 1,725 lm (warm white, 25W)

✔    Warm white or RGB lighting

✔    IP68 — fully waterproof, completely resin-filled

✔    9 Epistar LED chips per spot

✔    60° beam angle for wide, even light distribution

✔    Safe 12V AC/DC power supply

✔    2-wire (standard) or 4-wire (RGB smart control)

✔    Energy class A+

✔    Lifespan up to approx. 50,000 hours

✔    2-metre connection cable included

✔    2-year warranty



Technical Specifications

Model	PRO LINE HJ-SL146
Dimensions	Ø146 × 126 × 180 mm
Power	9W / 18W / 25W
Voltage	AC 12V / DC 12V
Light output warm white	9W: 756 lm — 18W: 1,314 lm — 25W: 1,725 lm
Light output RGB	9W: 404 lm — 18W: 702 lm — 25W: 875 lm
Beam angle	60°
LED chips	9 × Epistar
Connection	2-wire / 4-wire (RGB)
Cable	2 metres
IP rating	IP68 — fully waterproof
Housing material	316L stainless steel
Front/body material	Anti-UV PC
Interior	Completely resin-filled
Operating temperature	-25°C to +45°C
Energy class	A+
Lifespan	Up to approx. 50,000 hours
Warranty	2 years







www.xpropool.com • Specialist in professional LED lighting for swimming pools, ponds, saunas and outdoor spaces
